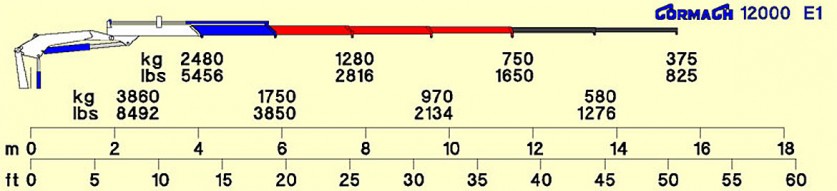

[/box] [vc_tabs width=”1/1″ el_position=”first last”] [vc_tab title=”E1″] [vc_column_text pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/1″ el_position=”first last”]
[table type=”striped_bordered”]
[trow][thcol]Technical specifications[/thcol][thcol]Metric system[/thcol][thcol]Imperial Measurement[/thcol]
[trow][tcol]Static moment at the turret pin[/tcol][tcol]12300 (daN/m)[/tcol][tcol]88520 (lbs/ft)[/tcol][/trow]
[trow][tcol]Hyd. boom length[/tcol][tcol]5840 (mm)[/tcol][tcol]19’2” (in)[/tcol][/trow]
[trow][tcol]Length[/tcol][tcol]793 (mm)[/tcol][tcol]2’7” (in)[/tcol][/trow]
[trow][tcol]Width[/tcol][tcol]2405 (mm)[/tcol][tcol]7’11” (in)[/tcol][/trow]
[trow][tcol]Height[/tcol][tcol]2160 (mm)[/tcol][tcol]7’1” (in)[/tcol][/trow]
[trow][tcol]Weight (without oil and fitting)[/tcol][tcol]1520(kg)[/tcol][tcol]3344 (lbs)[/tcol][/trow]
[trow][tcol]Lifting capacity[/tcol][tcol]3860 (kg)[/tcol][tcol]10360 (lbs)[/tcol][/trow]
[trow][tcol]Boom length with manual extensions[/tcol][tcol]15430 (mm)[/tcol][tcol]50’7” (in)[/tcol][/trow]
[trow][tcol]Slew torque[/tcol][tcol]870 (daN/m)[/tcol][tcol]6290(lbs/ft)[/tcol][/trow]
[trow][tcol]Slewing speed[/tcol][tcol]360 – 39 (° – sec)[/tcol][tcol]360 – 39 (° – sec)[/tcol][/trow]
[trow][tcol]Outriggers extension[/tcol][tcol]1400 + 1300 (mm)[/tcol][tcol]4’7” + 4’3” (in)[/tcol][/trow]
[trow][tcol]Outriggers width[/tcol][tcol]4850 (mm)[/tcol][tcol]15’11” (in)[/tcol][/trow]
[trow][tcol]Pump delivery[/tcol][tcol]25 (lit/min)[/tcol][tcol]6,6[/tcol][/trow]
[trow][tcol]Pressure[/tcol][tcol]275 (bar)[/tcol][tcol]3990(Psi)[/tcol][/trow]
[trow][tcol]Oil tank capacity[/tcol][tcol]57 (lit)[/tcol][tcol]15,05 (us gal)[/tcol][/trow]
[/table]

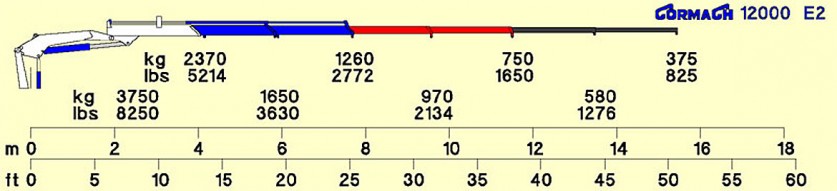

[/vc_column_text] [/vc_tab] [vc_tab title=”E2″] [vc_column_text pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/1″ el_position=”first last”]
[table type=”striped_bordered”]
[trow][thcol]Technical specifications[/thcol][thcol]Metric system[/thcol][thcol]Imperial Measurement[/thcol]
[trow][tcol]Static moment at the turret pin[/tcol][tcol]12300 (daN/m)[/tcol][tcol]88520 (lbs/ft)[/tcol][/trow]
[trow][tcol]Hyd. boom length[/tcol][tcol]7690 (mm)[/tcol][tcol]25’3” (in)[/tcol][/trow]
[trow][tcol]Length[/tcol][tcol]793 (mm)[/tcol][tcol]2’7” (in)[/tcol][/trow]
[trow][tcol]Width[/tcol][tcol]2405 (mm)[/tcol][tcol]7’11” (in)[/tcol][/trow]
[trow][tcol]Height[/tcol][tcol]2160 (mm)[/tcol][tcol]7’1” (in)[/tcol][/trow]
[trow][tcol]Weight (without oil and fitting)[/tcol][tcol]1635(kg)[/tcol][tcol]3597 (lbs)[/tcol][/trow]
[trow][tcol]Lifting capacity[/tcol][tcol]3750 (kg)[/tcol][tcol]10140 (lbs)[/tcol][/trow]
[trow][tcol]Boom length with manual extensions[/tcol][tcol]15430 (mm)[/tcol][tcol]50’7” (in)[/tcol][/trow]
[trow][tcol]Slew torque[/tcol][tcol]870 (daN/m)[/tcol][tcol]6290(lbs/ft)[/tcol][/trow]
[trow][tcol]Slewing speed[/tcol][tcol]360 – 39 (° – sec)[/tcol][tcol]360 – 39 (° – sec)[/tcol][/trow]
[trow][tcol]Outriggers extension[/tcol][tcol]1400 + 1300 (mm)[/tcol][tcol]4’7” + 4’3” (in)[/tcol][/trow]
[trow][tcol]Outriggers width[/tcol][tcol]4850 (mm)[/tcol][tcol]15’11” (in)[/tcol][/trow]
[trow][tcol]Pump delivery[/tcol][tcol]25 (lit/min)[/tcol][tcol]6,6[/tcol][/trow]
[trow][tcol]Pressure[/tcol][tcol]275 (bar)[/tcol][tcol]3990(Psi)[/tcol][/trow]
[trow][tcol]Oil tank capacity[/tcol][tcol]57 (lit)[/tcol][tcol]15,05 (us gal)[/tcol][/trow]
[/table]

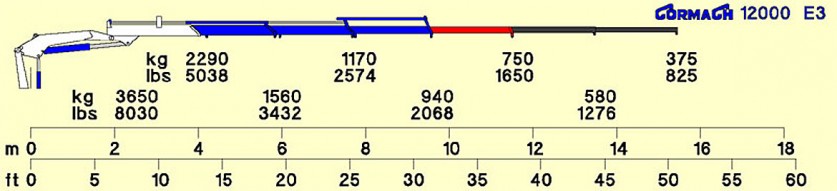

[/vc_column_text] [/vc_tab] [vc_tab title=”E3″] [vc_column_text pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/1″ el_position=”first last”]
[table type=”striped_bordered”]
[trow][thcol]Technical specifications[/thcol][thcol]Metric system[/thcol][thcol]Imperial Measurement[/thcol]
[trow][tcol]Static moment at the turret pin[/tcol][tcol]12300 (daN/m)[/tcol][tcol]88520 (lbs/ft)[/tcol][/trow]
[trow][tcol]Hyd. boom length[/tcol][tcol]9580 (mm)[/tcol][tcol]31’5” (in)[/tcol][/trow]
[trow][tcol]Length[/tcol][tcol]793 (mm)[/tcol][tcol]2’7” (in)[/tcol][/trow]
[trow][tcol]Width[/tcol][tcol]2405 (mm)[/tcol][tcol]7’11” (in)[/tcol][/trow]
[trow][tcol]Height[/tcol][tcol]2160 (mm)[/tcol][tcol]7’1” (in)[/tcol][/trow]
[trow][tcol]Weight (without oil and fitting)[/tcol][tcol]1740(kg)[/tcol][tcol]3828 (lbs)[/tcol][/trow]
[trow][tcol]Lifting capacity[/tcol][tcol]3650 (kg)[/tcol][tcol]1140 (lbs)[/tcol][/trow]
[trow][tcol]Boom length with manual extensions[/tcol][tcol]15430 (mm)[/tcol][tcol]50’7” (in)[/tcol][/trow]
[trow][tcol]Slew torque[/tcol][tcol]870 (daN/m)[/tcol][tcol]6290(lbs/ft)[/tcol][/trow]
[trow][tcol]Slewing speed[/tcol][tcol]360 – 39 (° – sec)[/tcol][tcol]360 – 39 (° – sec)[/tcol][/trow]
[trow][tcol]Outriggers extension[/tcol][tcol]1400 + 1300 (mm)[/tcol][tcol]4’7” + 4’3” (in)[/tcol][/trow]
[trow][tcol]Outriggers width[/tcol][tcol]4850 (mm)[/tcol][tcol]15’11” (in)[/tcol][/trow]
[trow][tcol]Pump delivery[/tcol][tcol]25 (lit/min)[/tcol][tcol]6,6[/tcol][/trow]
[trow][tcol]Pressure[/tcol][tcol]275 (bar)[/tcol][tcol]3990(Psi)[/tcol][/trow]
[trow][tcol]Oil tank capacity[/tcol][tcol]57 (lit)[/tcol][tcol]15,05 (us gal)[/tcol][/trow]
[/table]

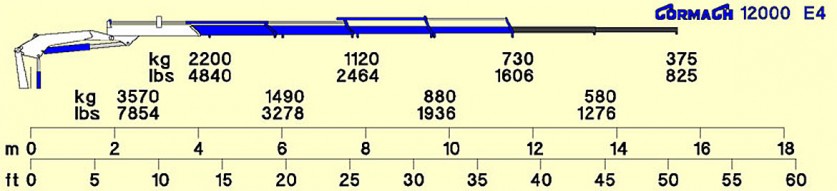

[/vc_column_text] [/vc_tab] [vc_tab title=”E4″] [vc_column_text pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/1″ el_position=”first last”]
[table type=”striped_bordered”]
[trow][thcol]Technical specifications[/thcol][thcol]Metric system[/thcol][thcol]Imperial Measurement[/thcol]
[trow][tcol]Static moment at the turret pin[/tcol][tcol]12300 (daN/m)[/tcol][tcol]88520 (lbs/ft)[/tcol][/trow]
[trow][tcol]Hyd. boom length[/tcol][tcol]11510 (mm)[/tcol][tcol]37’9” (in)[/tcol][/trow]
[trow][tcol]Length[/tcol][tcol]793 (mm)[/tcol][tcol]2’7” (in)[/tcol][/trow]
[trow][tcol]Width[/tcol][tcol]2405 (mm)[/tcol][tcol]7’11” (in)[/tcol][/trow]
[trow][tcol]Height[/tcol][tcol]2160 (mm)[/tcol][tcol]7’1” (in)[/tcol][/trow]
[trow][tcol]Weight (without oil and fitting)[/tcol][tcol]1830(kg)[/tcol][tcol]4026 (lbs)[/tcol][/trow]
[trow][tcol]Lifting capacity[/tcol][tcol]3570 (kg)[/tcol][tcol]9700 (lbs)[/tcol][/trow]
[trow][tcol]Boom length with manual extensions[/tcol][tcol]15430 (mm)[/tcol][tcol]50’7” (in)[/tcol][/trow]
[trow][tcol]Slew torque[/tcol][tcol]870 (daN/m)[/tcol][tcol]6290(lbs/ft)[/tcol][/trow]
[trow][tcol]Slewing speed[/tcol][tcol]360 – 39 (° – sec)[/tcol][tcol]360 – 39 (° – sec)[/tcol][/trow]
[trow][tcol]Outriggers extension[/tcol][tcol]1400 + 1300 (mm)[/tcol][tcol]4’7” + 4’3” (in)[/tcol][/trow]
[trow][tcol]Outriggers width[/tcol][tcol]4850 (mm)[/tcol][tcol]15’11” (in)[/tcol][/trow]
[trow][tcol]Pump delivery[/tcol][tcol]25 (lit/min)[/tcol][tcol]6,6[/tcol][/trow]
[trow][tcol]Pressure[/tcol][tcol]275 (bar)[/tcol][tcol]3990(Psi)[/tcol][/trow]
[trow][tcol]Oil tank capacity[/tcol][tcol]57 (lit)[/tcol][tcol]15,05 (us gal)[/tcol][/trow]
[/table]
[/vc_column_text] [/vc_tab] [/vc_tabs]
