[table type=”striped_bordered”]
[trow][thcol]Technical specifications[/thcol][thcol]Metric system[/thcol][thcol]Imperial Measurement[/thcol]
[trow][tcol]Static moment at the turret pin[/tcol][tcol]4700 (daN/m)[/tcol][tcol]32002 (lbs/ft)[/tcol][/trow]
[trow][tcol]Hyd. boom length[/tcol][tcol]4950 (mm)[/tcol][tcol]16’3” (in)[/tcol][/trow]
[trow][tcol]Length[/tcol][tcol]573 + 30 (mm)[/tcol][tcol]1’11” + 12” (in)[/tcol][/trow]
[trow][tcol]Width[/tcol][tcol]1990 (mm)[/tcol][tcol]6’6” (in)[/tcol][/trow]
[trow][tcol]Height[/tcol][tcol]1760 (mm)[/tcol][tcol]5’9” (in)[/tcol][/trow]
[trow][tcol]Weight (without oil and fitting)[/tcol][tcol]690 (kg)[/tcol][tcol]1521 (lbs)[/tcol][/trow]
[trow][tcol]Lifting capacity[/tcol][tcol]1900 (kg)[/tcol][tcol]4190 (lbs)[/tcol][/trow]
[trow][tcol]Boom length with manual extensions[/tcol][tcol]10200 (mm)[/tcol][tcol]33’6” (in)[/tcol][/trow]
[trow][tcol]Slew torque[/tcol][tcol]400 (daN/m)[/tcol][tcol]2894(lbs/ft)[/tcol][/trow]
[trow][tcol]Slewing speed[/tcol][tcol]360 – 30 (° – sec)[/tcol][tcol]360 – 30 (° – sec)[/tcol][/trow]
[trow][tcol]Outriggers extension[/tcol][tcol]650 + 580 (mm)[/tcol][tcol]2’2” + 1’11” (in)[/tcol][/trow]
[trow][tcol]Outriggers width[/tcol][tcol]3135 (mm)[/tcol][tcol]10’3” (in)[/tcol][/trow]
[trow][tcol]Pump delivery[/tcol][tcol]14 (lit/min)[/tcol][tcol]3,7[/tcol][/trow]
[trow][tcol]Pressure[/tcol][tcol]260 (bar)[/tcol][tcol]3697 (Psi)[/tcol][/trow]
[trow][tcol]Oil tank capacity[/tcol][tcol]31 (lit)[/tcol][tcol]8,2 (us gal)[/tcol][/trow]
[/table]

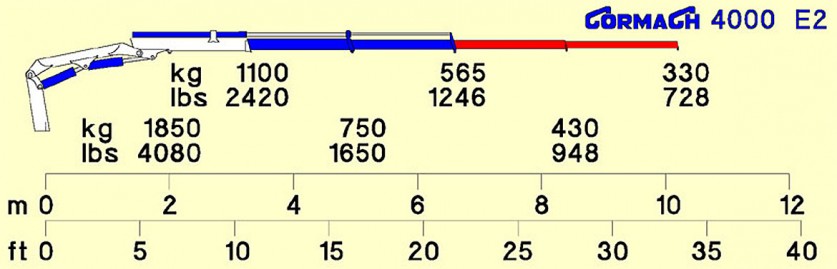

[/vc_column_text] [/vc_tab] [vc_tab title=”E2″] [vc_column_text pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/1″ el_position=”first last”]
[table type=”striped_bordered”]
[trow][thcol]Technical specifications[/thcol][thcol]Metric system[/thcol][thcol]Imperial Measurement[/thcol]
[trow][tcol]Static moment at the turret pin[/tcol][tcol]4700 (daN/m)[/tcol][tcol]32002 (lbs/ft)[/tcol][/trow]
[trow][tcol]Hyd. boom length[/tcol][tcol]6600 (mm)[/tcol][tcol]21’8” (in)[/tcol][/trow]
[trow][tcol]Length[/tcol][tcol]573 + 30 (mm)[/tcol][tcol]1’11” + 12” (in)[/tcol][/trow]
[trow][tcol]Width[/tcol][tcol]1990 (mm)[/tcol][tcol]6’6” (in)[/tcol][/trow]
[trow][tcol]Height[/tcol][tcol]1760 (mm)[/tcol][tcol]5’9” (in)[/tcol][/trow]
[trow][tcol]Weight (without oil and fitting)[/tcol][tcol]740 (kg)[/tcol][tcol]1631 (lbs)[/tcol][/trow]
[trow][tcol]Lifting capacity[/tcol][tcol]1850 (kg)[/tcol][tcol]4080 (lbs)[/tcol][/trow]
[trow][tcol]Boom length with manual extensions[/tcol][tcol]10200 (mm)[/tcol][tcol]33’6” (in)[/tcol][/trow]
[trow][tcol]Slew torque[/tcol][tcol]400 (daN/m)[/tcol][tcol]2894(lbs/ft)[/tcol][/trow]
[trow][tcol]Slewing speed[/tcol][tcol]360 – 30 (° – sec)[/tcol][tcol]360 – 30 (° – sec)[/tcol][/trow]
[trow][tcol]Outriggers extension[/tcol][tcol]650 + 580 (mm)[/tcol][tcol]2’2” + 1’11” (in)[/tcol][/trow]
[trow][tcol]Outriggers width[/tcol][tcol]3135 (mm)[/tcol][tcol]10’3” (in)[/tcol][/trow]
[trow][tcol]Pump delivery[/tcol][tcol]14 (lit/min)[/tcol][tcol]3,7[/tcol][/trow]
[trow][tcol]Pressure[/tcol][tcol]260 (bar)[/tcol][tcol]3697 (Psi)[/tcol][/trow]
[trow][tcol]Oil tank capacity[/tcol][tcol]31 (lit)[/tcol][tcol]8,2 (us gal)[/tcol][/trow]
[/table]
[/vc_column_text] [/vc_tab] [vc_tab title=”E3″] [vc_column_text pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/1″ el_position=”first last”]
[table type=”striped_bordered”]
[trow][thcol]Technical specifications[/thcol][thcol]Metric system[/thcol][thcol]Imperial Measurement[/thcol]
[trow][tcol]Static moment at the turret pin[/tcol][tcol]4700 (daN/m)[/tcol][tcol]32002 (lbs/ft)[/tcol][/trow]
[trow][tcol]Hyd. boom length[/tcol][tcol]8400 (mm)[/tcol][tcol]27’7” (in)[/tcol][/trow]
[trow][tcol]Length[/tcol][tcol]573 + 30 (mm)[/tcol][tcol]1’11” + 12” (in)[/tcol][/trow]
[trow][tcol]Width[/tcol][tcol]2190 (mm)[/tcol][tcol]7’2” (in)[/tcol][/trow]
[trow][tcol]Height[/tcol][tcol]1760 (mm)[/tcol][tcol]5’9” (in)[/tcol][/trow]
[trow][tcol]Weight (without oil and fitting)[/tcol][tcol]810 (kg)[/tcol][tcol]1790 (lbs)[/tcol][/trow]
[trow][tcol]Lifting capacity[/tcol][tcol]1830 (kg)[/tcol][tcol]4030 (lbs)[/tcol][/trow]
[trow][tcol]Boom length with manual extensions[/tcol][tcol]10200 (mm)[/tcol][tcol]33’6” (in)[/tcol][/trow]
[trow][tcol]Slew torque[/tcol][tcol]400 (daN/m)[/tcol][tcol]2894(lbs/ft)[/tcol][/trow]
[trow][tcol]Slewing speed[/tcol][tcol]360 – 30 (° – sec)[/tcol][tcol]360 – 30 (° – sec)[/tcol][/trow]
[trow][tcol]Outriggers extension[/tcol][tcol]650 + 580 (mm)[/tcol][tcol]2’2” + 1’11” (in)[/tcol][/trow]
[trow][tcol]Outriggers width[/tcol][tcol]3135 (mm)[/tcol][tcol]10’3” (in)[/tcol][/trow]
[trow][tcol]Pump delivery[/tcol][tcol]14 (lit/min)[/tcol][tcol]3,7[/tcol][/trow]
[trow][tcol]Pressure[/tcol][tcol]260 (bar)[/tcol][tcol]3697 (Psi)[/tcol][/trow]
[trow][tcol]Oil tank capacity[/tcol][tcol]31 (lit)[/tcol][tcol]8,2 (us gal)[/tcol][/trow]
[/table]
