[box title=”Free Download Brochure” type=”whitestroke” pb_margin_bottom=”no” width=”1/1″ el_position=”first last”]

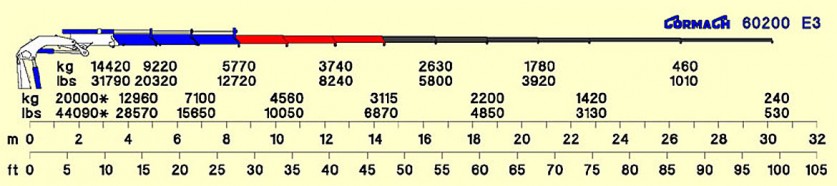

[/box] [vc_tabs width=”1/1″ el_position=”first last”] [vc_tab title=”E3″] [vc_column_text pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/1″ el_position=”first last”]
[table type=”striped_bordered”]
[trow][thcol]Technical specifications[/thcol][thcol]Metric system[/thcol][thcol]Imperial Measurement[/thcol]
[trow][tcol]Static moment at the turret pin[/tcol][tcol]60200 (daN/m)[/tcol][tcol]434511 (lbs/ft)[/tcol][/trow]
[trow][tcol]Hyd. boom length[/tcol][tcol]8500(mm)[/tcol][tcol]27’11” (in)[/tcol][/trow]
[trow][tcol]Length[/tcol][tcol]1502 (mm)[/tcol][tcol]4’11’ (in)[/tcol][/trow]
[trow][tcol]Width[/tcol][tcol]2460(mm)[/tcol][tcol]8’1” (in)[/tcol][/trow]
[trow][tcol]Height[/tcol][tcol]2507 (mm)[/tcol][tcol]8’3” (in)[/tcol][/trow]
[trow][tcol]Weight (without oil and fitting)[/tcol][tcol]5615(kg)[/tcol][tcol]12379(lbs)[/tcol][/trow]
[trow][tcol]Lifting capacity[/tcol][tcol]20000 (kg)[/tcol][tcol]44090(lbs)[/tcol][/trow]
[trow][tcol]Boom length with manual extensions[/tcol][tcol]30180 (mm)[/tcol][tcol]99’0” (in)[/tcol][/trow]
[trow][tcol]Slew torque[/tcol][tcol]4800 (daN/m)[/tcol][tcol]34725(lbs/ft)[/tcol][/trow]
[trow][tcol]Slewing speed[/tcol][tcol]360 – 45 (° – sec)[/tcol][tcol]360 – 45 (° – sec)[/tcol][/trow]
[trow][tcol]Outriggers extension[/tcol][tcol]2420 + 2900 (mm)[/tcol][tcol]7’11” + 9’6” (in)[/tcol][/trow]
[trow][tcol]Outriggers width[/tcol][tcol]7598 (mm)[/tcol][tcol]24’11” (in)[/tcol][/trow]
[trow][tcol]Pump delivery[/tcol][tcol]80 (lit/min)[/tcol][tcol]21[/tcol][/trow]
[trow][tcol]Pressure[/tcol][tcol]280 (bar)[/tcol][tcol]3982(Psi)[/tcol][/trow]
[trow][tcol]Oil tank capacity[/tcol][tcol]250 (lit)[/tcol][tcol]66 (us gal)[/tcol][/trow]
[/table]

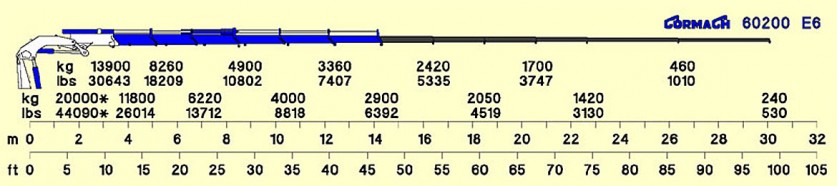

[/vc_column_text] [/vc_tab] [vc_tab title=”E6″] [vc_column_text pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/1″ el_position=”first last”]
[table type=”striped_bordered”]
[trow][thcol]Technical specifications[/thcol][thcol]Metric system[/thcol][thcol]Imperial Measurement[/thcol]
[trow][tcol]Static moment at the turret pin[/tcol][tcol]61000 (daN/m)[/tcol][tcol]441298 (lbs/ft)[/tcol][/trow]
[trow][tcol]Hyd. boom length[/tcol][tcol]14300(mm)[/tcol][tcol]46’11” (in)[/tcol][/trow]
[trow][tcol]Length[/tcol][tcol]1502 (mm)[/tcol][tcol]4’11’ (in)[/tcol][/trow]
[trow][tcol]Width[/tcol][tcol]2460(mm)[/tcol][tcol]8’1” (in)[/tcol][/trow]
[trow][tcol]Height[/tcol][tcol]2507 (mm)[/tcol][tcol]8’3” (in)[/tcol][/trow]
[trow][tcol]Weight (without oil and fitting)[/tcol][tcol]6630(kg)[/tcol][tcol]14620(lbs)[/tcol][/trow]
[trow][tcol]Lifting capacity[/tcol][tcol]20000 (kg)[/tcol][tcol]44090(lbs)[/tcol][/trow]
[trow][tcol]Boom length with manual extensions[/tcol][tcol]30080 (mm)[/tcol][tcol]98’8” (in)[/tcol][/trow]
[trow][tcol]Slew torque[/tcol][tcol]4800 (daN/m)[/tcol][tcol]34725(lbs/ft)[/tcol][/trow]
[trow][tcol]Slewing speed[/tcol][tcol]360 – 45 (° – sec)[/tcol][tcol]360 – 45 (° – sec)[/tcol][/trow]
[trow][tcol]Outriggers extension[/tcol][tcol]2420 + 2900 (mm)[/tcol][tcol]7’11” + 9’6” (in)[/tcol][/trow]
[trow][tcol]Outriggers width[/tcol][tcol]7598 (mm)[/tcol][tcol]24’11” (in)[/tcol][/trow]
[trow][tcol]Pump delivery[/tcol][tcol]80 (lit/min)[/tcol][tcol]21[/tcol][/trow]
[trow][tcol]Pressure[/tcol][tcol]280 (bar)[/tcol][tcol]3982(Psi)[/tcol][/trow]
[trow][tcol]Oil tank capacity[/tcol][tcol]250 (lit)[/tcol][tcol]66 (us gal)[/tcol][/trow]
[/table]

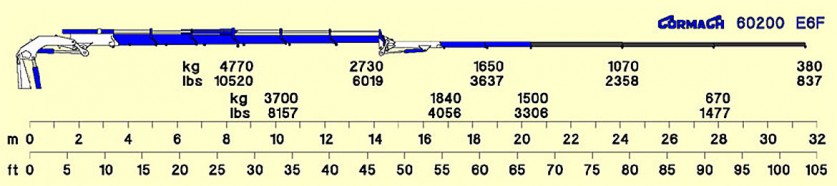

[/vc_column_text] [/vc_tab] [vc_tab title=”E6F”] [vc_column_text pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/1″ el_position=”first last”]
[table type=”striped_bordered”]
[trow][thcol]Technical specifications[/thcol][thcol]Metric system[/thcol][thcol]Imperial Measurement[/thcol]
[trow][tcol]Static moment at the turret pin[/tcol][tcol]61000 (daN/m)[/tcol][tcol]441298 (lbs/ft)[/tcol][/trow]
[trow][tcol]Hyd. boom length[/tcol][tcol]20360(mm)[/tcol][tcol]66’10” (in)[/tcol][/trow]
[trow][tcol]Length[/tcol][tcol]1502 (mm)[/tcol][tcol]4’11’ (in)[/tcol][/trow]
[trow][tcol]Width[/tcol][tcol]2460(mm)[/tcol][tcol]8’1” (in)[/tcol][/trow]
[trow][tcol]Height[/tcol][tcol]2507 (mm)[/tcol][tcol]8’3” (in)[/tcol][/trow]
[trow][tcol]Weight (without oil and fitting)[/tcol][tcol]7360(kg)[/tcol][tcol]16230(lbs)[/tcol][/trow]
[trow][tcol]Lifting capacity[/tcol][tcol]4770 (kg)[/tcol][tcol]10520(lbs)[/tcol][/trow]
[trow][tcol]Boom length with manual extensions[/tcol][tcol]31510 (mm)[/tcol][tcol]103’5” (in)[/tcol][/trow]
[trow][tcol]Slew torque[/tcol][tcol]4800 (daN/m)[/tcol][tcol]34725(lbs/ft)[/tcol][/trow]
[trow][tcol]Slewing speed[/tcol][tcol]360 – 45 (° – sec)[/tcol][tcol]360 – 45 (° – sec)[/tcol][/trow]
[trow][tcol]Outriggers extension[/tcol][tcol]2420 + 2900 (mm)[/tcol][tcol]7’11” + 9’6” (in)[/tcol][/trow]
[trow][tcol]Outriggers width[/tcol][tcol]7598 (mm)[/tcol][tcol]24’11” (in)[/tcol][/trow]
[trow][tcol]Pump delivery[/tcol][tcol]80 (lit/min)[/tcol][tcol]21[/tcol][/trow]
[trow][tcol]Pressure[/tcol][tcol]280 (bar)[/tcol][tcol]3982(Psi)[/tcol][/trow]
[trow][tcol]Oil tank capacity[/tcol][tcol]250 (lit)[/tcol][tcol]66 (us gal)[/tcol][/trow]
[/table]
[/vc_column_text] [/vc_tab] [/vc_tabs]
[vc_column_text pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/1″ el_position=”first last”]
Gallery
[/vc_column_text] [vc_single_image image=”1565″ image_size=”full” frame=”borderframe” lightbox=”yes” link_target=”_self” width=”1/4″ el_position=”first”] [vc_single_image image=”1566″ image_size=”full” frame=”borderframe” lightbox=”yes” link_target=”_self” width=”1/4″] [vc_single_image image=”1567″ image_size=”full” frame=”borderframe” lightbox=”yes” link_target=”_self” width=”1/4″] [vc_single_image image=”1568″ image_size=”full” frame=”borderframe” lightbox=”yes” link_target=”_self” width=”1/4″ el_position=”last”]
