CHARACTERISTICS
- Tank capacity (m3 ) 5 7
- Plate material S355JR S355JR
- Exterior length “L” (mm) 3340 3750
- Exterior width “W” (mm) 1830 1830
- Exterior height“H” (mm) 1320 1450
- GVM recommended(ton) 3,5 3,5 / 5,5
STANDARD SUPPLY
- Tipping action synchronized with stabilizers.
- Double acting cylinder for body tilting mechanism, equipped with hose break valves and over-centre valves.
- Lateral door (right side / direction of travel)
- Emergency stop devices at each sides.
- N.1 Flashing beacon.
- N. 1 Working light.
- Safety rod for maintenance operations.

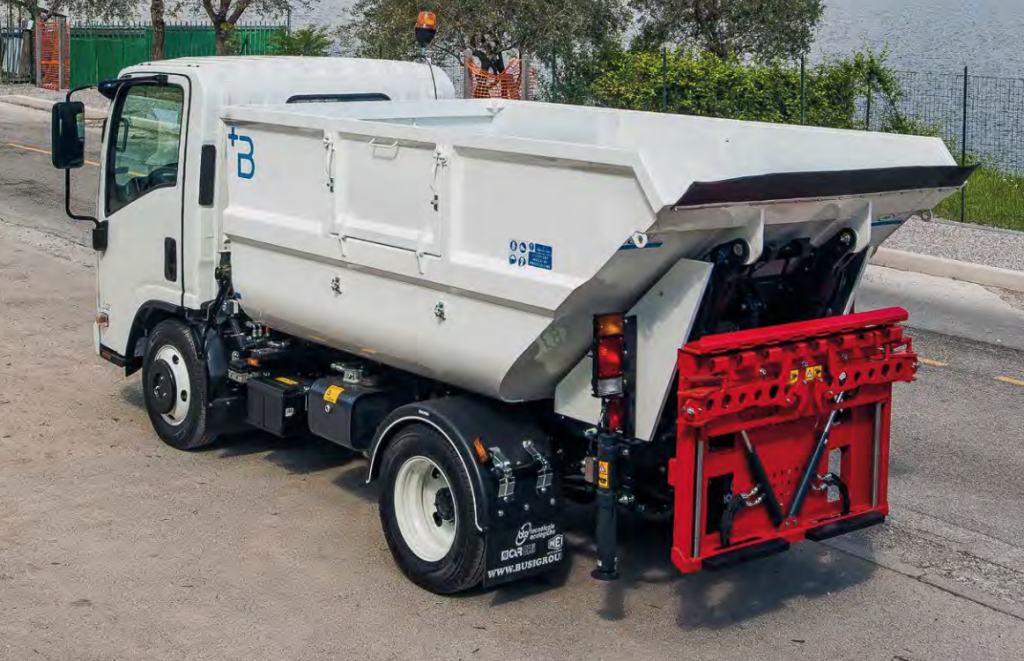

BIN LIFT TIPPING DEVICE (AVC)
- DIN mount for 660 – 1100 litre four wheeled bins (UNI EN 840).
- Comb lifting device: for 80 – 360 litre two wheeled bins (UNI EN 840).
- Safety side guards.
SATELLITE VEICHLE EQUIPMENT
- PTO gearbox ON from cab (button + clutch).
- Hydraulic Pumps.
- Oil tank. •
- Plastic fenders.
- Side guards.
- Side marker lights.
- Standard CE, maintenance and use manual and safety stickers in English language.
PAINTING CYCLE
- Cleaning, pickling and interior paint with water epoxy primer.
- External painting WITH LOW ENVIRONMENTAL IMPACT polished catalyzed polyurethane water soluble enamel applied with Airless technology within the thickness of 70 – 90 microns, in single colour to define. Drying with forced drying oven at a temperature of 60°.
